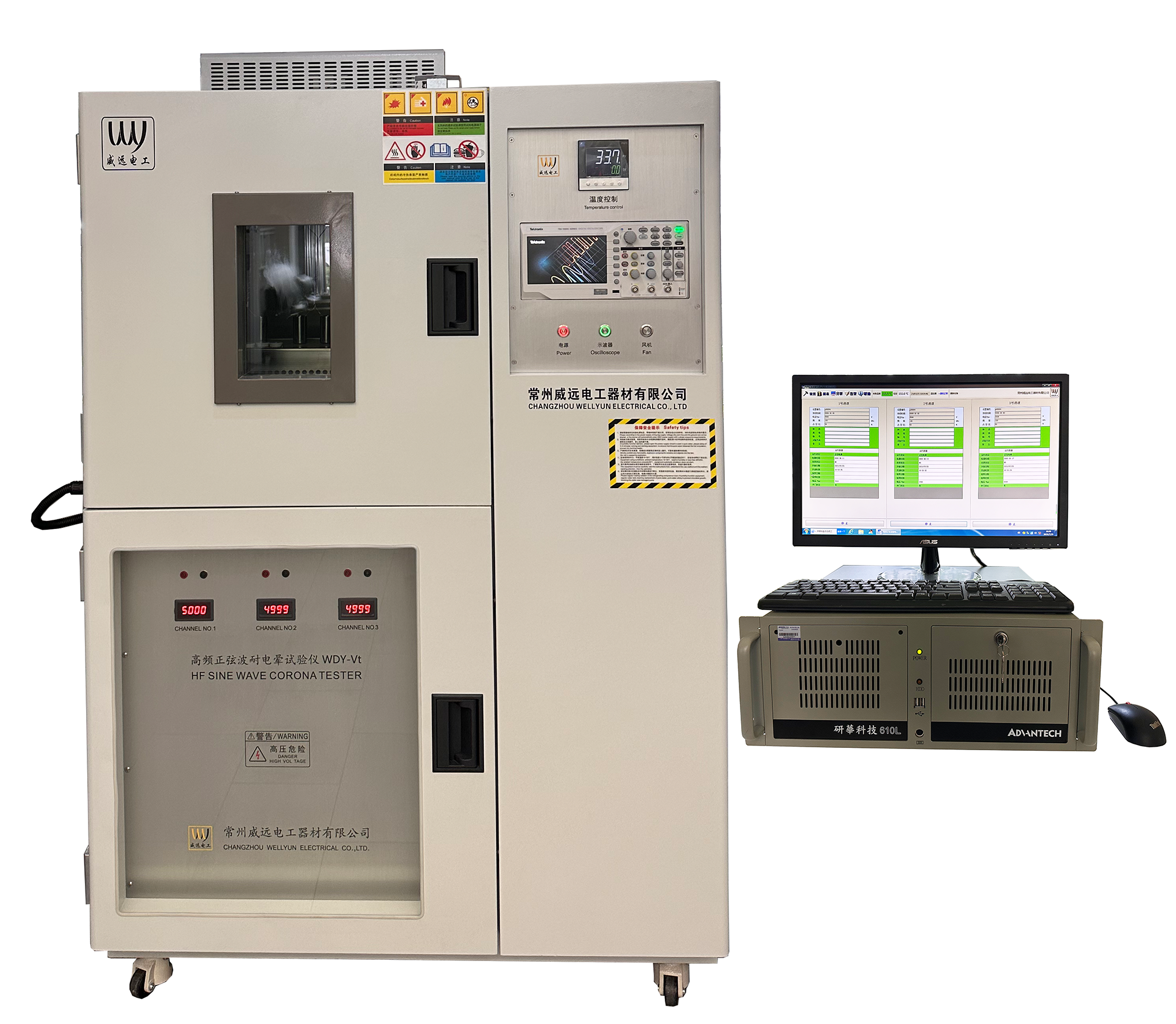

High frequency sine wave corona resistance tester WDY-Vt
Application: this equipment is used to evaluate the voltage life and voltage amplitude of enameled wire. Based on the series tests of GB/T22566 life evaluation model, the curve model of corresponding insulation layer is established. The system has its own software, automatically calculate stored data according to the formula and draw curves, historical data can be queried, at any time to get data can print test reports.
1) The maximum output voltage: 3000V, 5000V, 7000V (Vpp)
1) Test frequency: 100 KHz
2）Waveform: sine wave
3）Oven temperature: room temperature～300° ( continuous adjustable )
3）Number of channels: 5 channels
5）Load range: capacitor load range is related to frequency, power constant, the same power supply, the larger the load capacitor frequency and voltage is lower (enameled round flat line capacitor about 6～100PF).
6）Power : 4000W
7）Overall dimensions and Weight : L1270×W1010×H1950 mm,340 KG.
